43
-
800
-
1300
-
73.65 mm
-
38.85 mm
-
12.7 mm
-
2.9 in
-
1.53 in
-
0.5 in

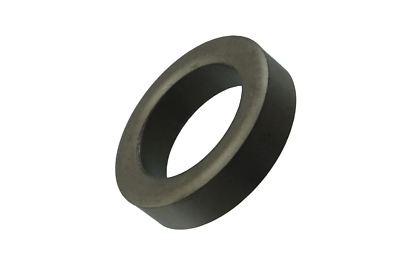

Toroid for broadband and EMI filters
Suitable for HF high power balun up to 1.5 kW.
Example application of a 1:1 balun in HF band.
Frequency
(MHz) |
Impedance
(Ohm) |
1m RG400 or RG142 (6+6 turns)
the second turn is reversed
(tested with HP 4191A impedance analyzer)
|
| 1.5 |
2000 |
| 3.0 |
6000 |
| 10 |
2500 |
| 20 |
1100 |
| 28 |
800 |
Note: for the proper operation of a 1:1 balun it is suggested an impedance of at least 500 Ohms (preferably 1000), this gives the possibility to obtain a good symmetrization of the coaxial cable on a balanced load.
Frequency range by application:
- EMI/RFI suppression: 25 - 300 MHz
- Inductive: <10 MHz
- Power magnetics: -
Lees minder
Material:
43
Permeability (µi):
800
AL (nH):
1300
Outer diameter (metric):
73.65 mm
Inner diameter (metric):
38.85 mm
Height (metric):
12.7 mm
Outer diameter (imperial):
2.9 in
Inner diameter (imperial):
1.53 in
Height (imperial):
0.5 in
Toroid for broadband and EMI filters
Suitable for HF high power balun up to 1.5 kW.
Example application of a 1:1 balun in HF band.Lees meer
